Sensory Profiles of Protein-Fortified Kefir prepared Using Edible Insects (Silkworm Pupae, Bombyx mori): A Preliminary Study

Kim, Young-Ji; Chon, Jung-Whan; Song, Kwang-Young; Kim, Dong-Hyeon; Kim, Hyunsook; Seo, Kun-Ho

doi:10.22424/jmsb.2017.35.4.262

J. Milk Sci. Biotechnol. 2017; 35(4):262-265

pISSN: 2384-0269, eISSN: 2508-3635

DOI: https://doi.org/10.22424/jmsb.2017.35.4.262

Article

Sensory Profiles of Protein-Fortified Kefir prepared Using Edible Insects (Silkworm Pupae, Bombyx mori): A Preliminary Study

Young-Ji Kim¹^,^†, Jung-Whan Chon¹^,²^,^†, Kwang-Young Song¹^,²^,^†, Dong-Hyeon Kim¹, Hyunsook Kim⁴, Kun-Ho Seo¹^,^†^,^*

Author Information & Copyright ▼

¹Center for One Health, College of Veterinary Medicine, Konkuk University, Seoul, Korea

²National Center for Toxicological Research, US Food and Drug Administration, Jefferson, AR, USA

³Dept. of Biological Engineering, Yanbian University of Science and Technology, Yanji, China

⁴Dept. of Food & Nutrition, College of Human Ecology, Hanyang University, Seoul, Korea

^*Corresponding Author : Kwang-Young Song, Center for One Health, College of Veterinary Medicine, Konkuk University, Seoul 05029 South Korea, and Department of Biological Engineering, Yanbian University of Science and Technology, Yanji, Jilin Province, 133000 China. Tel: +82-2-450-4121, Fax: +82-2-3436-4128, E-mail : drkysong@gmail.com

† These authors contributed equally to this study.

ⓒ Copyright 2017, Korean Society of Milk Science and Biotechnology. This is an Open-Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Received: Dec 12, 2017 ; Revised: Dec 18, 2017 ; Accepted: Dec 20, 2017

Published Online: Dec 31, 2017

Abstract

Bombyx mori (silkworm pupae) is a unique and biologically significant insect, which is a recognized source of high quality protein that provides all the essential amino acids required for human health. Recently, many studies have focused on various biomedical applications of B. mori proteins. The purpose of this study was to manufacture protein-fortified kefir containing different concentrations of B. mori powder according to pH and sensory evaluations. The value of the protein-fortified kefir increased but the pH decreased with increasing incubation time, indicating that the amount of B. mori powder did not affect and pH. Addition of B. mori powder also did not affect the sensory properties of overall acceptability, texture, and color compared to control group without addition of B. mori powder. However, flavor and taste were affected by increasing the amounts of B. mori powder, with a significant difference in both flavor and taste between the control and treated groups (both p<0.05). There was no significant difference in overall acceptability, texture, and color. Further studies are needed for producing kefir as a dietary supplement utilizing the functional properties of B. mori.

Keywords: Bombyx mori (Silkworm pupae); protein-fortified; kefir; sensory evaluation

Introduction

Food production had a considerable environmental impact and future food systems need to take this into account(CFS, 2009; Lang and Barling, 2013; van Huis, 2017). In particular the production of meat, especially ruminant meat, was more and more debated in view of environmental, societal or food safety and animal welfare concerns(van Huis, 2015). Until now, an inventory of the edible insect species eaten from all over the world yielded more than about 2,000 species, and edible insects had been consumed in more than 110 countries over the world(Rumpold and Schlüter, 2013; Jongema, 2017). Especially, the high proportion of edible insects was Acheta domesticus (Cricket), T. molitor (Mealworm), and so on(Nowak et al., 2016). Among various edible insects, Bombyx mori (Silkworm pupae) was a major item among edible insects and were mainly consumed in Asia area (Baker et al., 2016). However, the availability of Bombyx mori (Silkworm pupae) was very low than other edible insects(Park et al., 2017). Hence it urgently needs to utilize Bombyx mori (Silkworm pupae) so as to develop the high value-added commercial products.

Recently, kefir originating from the Caucasian Mountains has gained popularity as a health promoting beverage and source of organisms (Vinderola et al., 2006; Walsh et al., 2016). Kefir has been associated with various health benefits through examining the mechanisms (Liu et al., 2012). According to several studies, Kefir had demonstrated ACE inhibitory activity, the ability to improve levels of serum cholesterol, and immunomodulatory characteristics, and so on (Maeda et al., 2004; Jeong et al., 2017). Additionally, among various lactic acid bacteria contained kefir, Lactobacillus kefiri, L. kefiranofaciens, and L. kefiranofaciens had shown beneficial effects for health in vivo(Chen et al., 2012).

Therefore, the purpose of this study was to manufacture the protein-fortified kefir added with Bombyx mori (Silkworm pupae) with improving the sensory evaluation. In this experiment, among various physicochemical characteristics of the protein-fortified kefir produced with Bombyx mori (Silkworm pupae), pH and sensory evaluation were analyzed.

Materials and Methods

1. Bombyx mori (Silkworm pupae) powder preparation

Dried Bombyx mori (Silkworm pupae) was purchased from Sworm Co. (Korea), and then was grinded into powder using manual grinder, passed through a 25 mesh sieve, and stored in polyethylene bags at -20℃ until use.

2. The preparation of the protein-fortified kefir added with Bombyx mori (Silkworm pupae) powder

The kefir grains were obtained from Center for One Health, College of Veterinary Medicine, Konkuk University in Seoul, Korea. And kefir grains were used to ferment milk for producing protein-fortified kefir (Fig. 1). Protein-fortified kefir samples were added with different concentration rates of Bombyx mori (Silkworm pupae) powder (0% as control, 0.5%, 1%, and 2%). And then the protein-fortified kefir samples were stored at 4℃.

Fig. 1. The flow chart of procedure for the manufacture of the protein- fortified kefir added with Bombyx mori (Silkworm pupae) powder.

Download Original Figure

3. The pH of the protein-fortified kefir added with Bombyx mori (Silkworm pupae) powder

The value of pH was measured with a digital pH meter (Orion Star A211, USA). Before measuring pH, the detector was calibrated with pH 4 and pH 7 buffer, respectively. All treatments were performed in triples.

4. The sensory evaluation of the protein-fortified kefir added with Bombyx mori (Silkworm pupae) powder

The sensory evaluation was carried out by 10 trained panelists between 20 and 40 years of age. The samples were coded with three digit numbers and randomly served at 8 to 10℃ in plastic cups (10 mL). All assessors completed a test assessment form to compare the five sensory attributes (appearance, flavor, taste, and overall acceptability) by using a five-point hedonic scale (1, extremely poor; 2, poor; 3, fair; 4, good; 5, excellent).

5. Statistical analysis

For all data analyses, GraphPad Prism 5 (USA) was used. Two separate experiments with duplicate assays were performed. Analysis of variance (ANOVA) was used to determine the significance of main effect. Duncan's multiple range test was used to determine differences between means. Statistical significance was considered at p<0.05.

Results and Discussion

1. The pH of the protein-fortified kefir added with Bombyx mori (Silkworm pupae) powder

In this study, after the fermentation of kefir premix, the pH was decreased to about 4.49 The pH value of the protein- fortified kefir added with Bombyx mori (Silkworm pupae) powder (0.5%, 1%, and 2%) showed 4.51, 4,50, and 4,52, respectively. While, the titratable acidity (TA) contents of the protein-fortified kefir added with Bombyx mori (Silkworm pupae) powder (0%, 0.5%, 1%, and 2%) showed approximately from 0.91 to 0.92% (data not shown). Then, the pH and TA value between control keifr and kefir added with Bombyx mori (Silkworm pupae) powder (0.5%, 1%, and %) were similar, and there was no significant difference of TA and pH between control group and treated group.

2. The sensory evaluation of the protein-fortified kefir added with Bombyx mori (Silkworm pupae) powder

The sensory evaluation of the protein-fortified kefir was evaluated by 10 trained panelists of ages 20 to 40 years, and the results are summarized in Fig. 2.

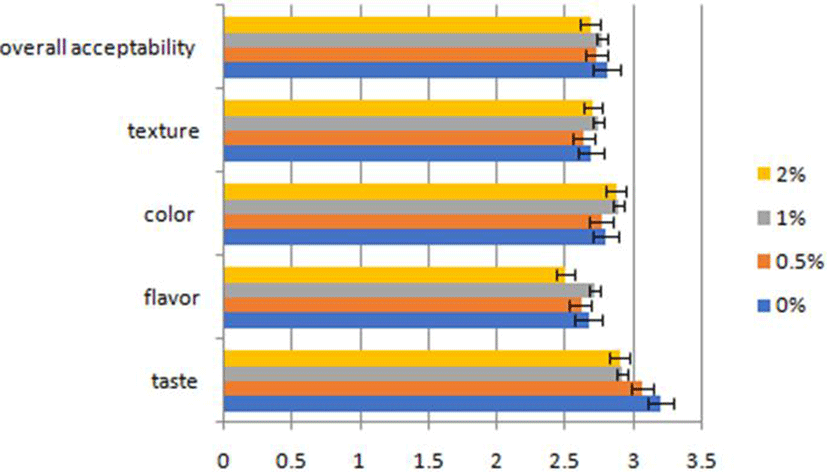

Fig. 2. Sensory evaluations of the protein-fortified kefir added with 0% as control, 0.5%, 1%, and 2%, of Bombyx mori (Silkworm pupae) powder.

Download Original Figure

The protein-fortified kefir was prepared with Bombyx mori (Silkworm pupae) powder at concentrations of 0, 0.5, 1, and 2%, respectively. According to statistical analysis of the sensory properties, there was not any significant difference in overall acceptability, texture, and color, but in flavor and taste between control group and treated group (p<0.05).

The taste scores for the protein-fortified kefir with Bombyx mori (Silkworm pupae) powder (0% as control, 0.5%, 1%, and 2%) showed 3.20, 3.06, 2.91, and 2.89, respectively. The flavor scores of the protein-fortified kefir with Bombyx mori (Silkworm pupae) powder (0% as control, 0.5%, 1%, and 2%) showed 2.66, 2.61, 2.71, and 2.50, respectively. The color scores of the protein-fortified kefir with Bombyx mori (Silkworm pupae) powder (0% as control, 0.5%, 1%,

and 2%) showed 2.79, 2.76, 2.89, and 2.87, respectively. The texture scores of the protein-fortified kefir with Bombyx mori (Silkworm pupae) powder (0% as control, 0.5%, 1%, and 2%) showed 2.69, 2.63, 2.74, and 2.70, respectively. And the overall acceptability scores of the protein-fortified kefir with Bombyx mori (Silkworm pupae) powder (0% as control, 0.5%, 1%, and 2%) showed 2.80, 2.72, 2.76, and 2.68, respectively. Therefore, the scores of all categories except color were the same or lower in Bombyx mori (Silkworm pupae) powder-containing protein-fortified kefir with 0.5%, 1%, and 2% among the experimental group compared with the control group (0%).

To summarize the results of this experiments, the addition of Bombyx mori (Silkworm pupae) powder did not affect the sensory properties such as overall acceptability, texture, and color compared to control group without addition of Bombyx mori (Silkworm pupae) powder. While, the flavor and taste showed high scores according to the addition amount of Bombyx mori (Silkworm pupae) powder.

According to several previous studies (Park and Park, 1986; Jeon and Park, 1992), the defatted Bombyx mori (Silkworm pupae) was a excellent protein source when it was added to emulsified food, and also the enzymatically hydrolyzed Bombyx mori (Silkworm pupae) could improve the retention capacity of water and oil to compare with non-treated Bombyx mori (Silkworm pupae). And Park et al. (2017) reported that the combination of Bombyx mori (Silkworm pupae) and transglutaminase could be a new functional and nutritional resource for meat products.

Hence, it is necessary to use Bombyx mori (Silkworm pupae) to upgrade its functionality as food additives. Especially, Bombyx mori (Silkworm pupae) proteins are efficiently worked in wound dressings, hepatoprotective and antiapoptotic activity, antigenotoxicity, regulation of blood glucose and lipids, anticancer agent, and so on (Lang and Barling, 2013; Park et al., 2017). Therefore, Bombyx mori (Silkworm pupae) could be utilized as food supplement and its enormous proteins open the new dimension for biomedical science (Kumar et al., 2015; van Huis, 2017).

Conclusively, the protein-fortified kefir added with 0%, 0.5%, 1%, and 2% of Bombyx mori (Silkworm pupae) powder showed the increase of TA but decrease of pH. Also the protein-fortified kefir containing 0.5~2% concentration of Bombyx mori (Silkworm pupae) powder received higher scores for color and texture in the sensory properties. In the future, additional researches are essential for manufacturing the fortified kefir with addition of Bombyx mori (Silkworm pupae) powder so as to upgrade the efficiency for human health.

Disclaimer

The views expressed herein do not necessarily reflect those of the US Food and Drug Administration or the US Department of Health and Human Services.

References

CFS. 2009. 35th Session, agenda item III, Reform of the Committee on World Food Security (CFS). Final Version. Rome: FAO.

Chen, Y. P., Hsiao, P. J., Hong, W. S., Dai, T. Y. and Chen, M. J. 2012. Lactobacillus kefiranofaciens M1 isolated from milk kefir grains ameliorates experimental colitis in vitro and in vivo. J. Dairy Sci. 95:63-74.

Jeon, J. R. and Park, J. R. 1992. Functional properties of silkworm larvae protein concentrate after enzyme treatments. J. Korean Soc. Food Sci. Nutr. 21:706-711.

Jeong, D., Kim, D. H., Kang, I. B., Kim, H., Song, K. Y., Kim, H. S. and Seo, K. H. 2017. Modulation of gut microbiota and increase in fecal water content in mice induced by administration of Lactobacillus kefiranofaciens DN1. Food Funct. 8:680-686.

Jongema, Y. 2017. List of edible insects of the world (April 1, 2017). https://www.wur.nl/en/Expertise-Services/Chair- groups/Plant-Sciences/Laboratory-of-Entomology/Edible-insects/Worldwide-species-list.htm Accessed on November 20, 2017.

Kumar, D., Dev, P. and Kumar, R. V. 2015. Biomedical applications of silkworm pupae proteins. In: Kumar D., R. Kundapur R. (eds) Biomedical applications of natural proteins. SpringerBriefs in Biochemistry and Molecular Biology. Springer, New Delhi.

Lang, T. and Barling, D. 2013. Nutrition and sustainability: an emerging food policy discourse. Proc. Nutr. Soc. 72: 1-12.

Liu, H., Xie, Y. H., Xiong, L. X., Dong, R. T., Pan, C. L., Teng, G. X. and Zhang, H. X. 2012. Effect and mechanism of cholesterol-lowering by Kluyveromyces from tibetan kefir. Advanced Materials Research 343-344: 1290-1298.

Maeda, H., Zhu, X. and Mitsuoka, T. 2004. Effects of an exopolysaccharide (Kefiran) from Lactobacillus kefiranofaciens on blood glucose in KKAy mice and constipation in SD rats induced by a low-fiber diet. Bioscience and Microflora 23:149-153.

10.

Nowak, V., Persijn, D., Rittenschober, D. and Charrondiere, U. R. 2016. Review of food composition data for edible insects. Food Chem. 193:39-46.

11.

Park, G. S. and Park, J. R. 1986. Functional properties of silkworm larvae protein concentrate. Korean J. Food Sci. Technol. 18:204-209.

12.

Park, Y. S., Choi, Y. S., Hwang, K. E., Kim, T. K., Lee, C. W., Shin, D. M. and Han, S. G. 2017. Physicochemical properties of meat batter added with edible silkworm pupae (Bombyx mori) and transglutaminase. Korean J. Food Sci. An. 37:351-359.

13.

Rumpold, B. A. and Schlüter, O. K. 2013. Potential and chal- lenges of insects as an innovative source for food and feed production. Innov. Food Sci. Emerg. Technol. 17: 1-11.

14.

Van Huis, A. 2015. Edible insects contributing to food security? Agric. & Food Secur. 4:20.

15.

Van Huis, A. 2017. Edible insects and research needs. J. Insects Food Feed 3:3-5.

16.

Vinderola, G., Perdigón, G., Duarte, J., Farnworth, E. and Matar, C. 2006. Effects of the oral administration of the exopolysaccharide produced by Lactobacillus kefiranofaciens on the gut mucosal immunity. Cytokine. 36:254-260.

17.

Walsh, A. M., Crispie, F., Kilcawley, K., O'Sullivan, O., O'Sullivan, M. G., Claesson, M. J. and Cotter, P. D. 2016. Microbial succession and flavor production in the fermented dairy beverage kefir. mSystems. 1:e00052-16.
